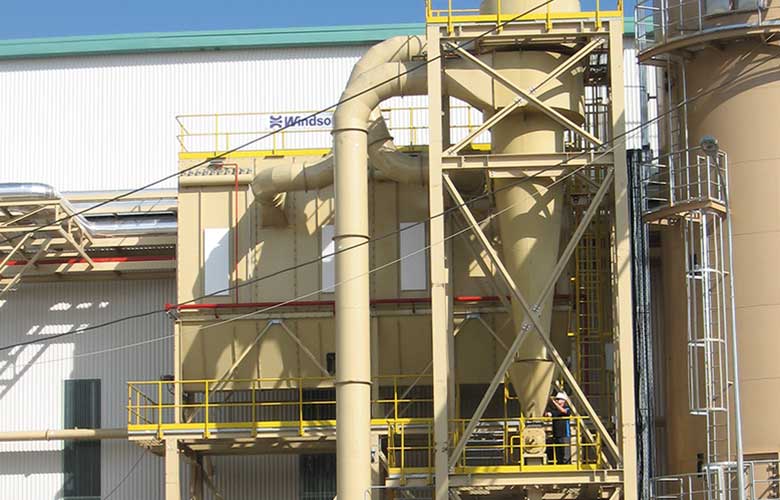

Cyclones

Cyclones are Centrifugal Separators.

The dust laden gas flow enters the cyclone tangentially creating an internal gas vortex.

Under the action of centrifugal force the dust is thrown to the wall of the cyclone.

The dust slides down the wall and out of the cyclone base.

The gas flow is turned in the cone section and exhausts through the inner tube at the air outlet.

Please contact our Wellington office for further assistance >

Models Available

Model WD: A compact cyclone with good efficiency at medium pressure drop. Particularly suitable for low density dusts.
Model HE: A high efficiency medium pressure drop cyclone. Suitable for most applications.
Model HT: A wide bodied low pressure deep cyclone. Particularly suitable for large particles.
Model HF: A very compact medium efficiency and medium pressure drop cyclone. Suitable for most applications.

Construction options: Light duty galvanised steel, heavy duty steel, blast cleaned and painted or stainless steel

Enquire now >

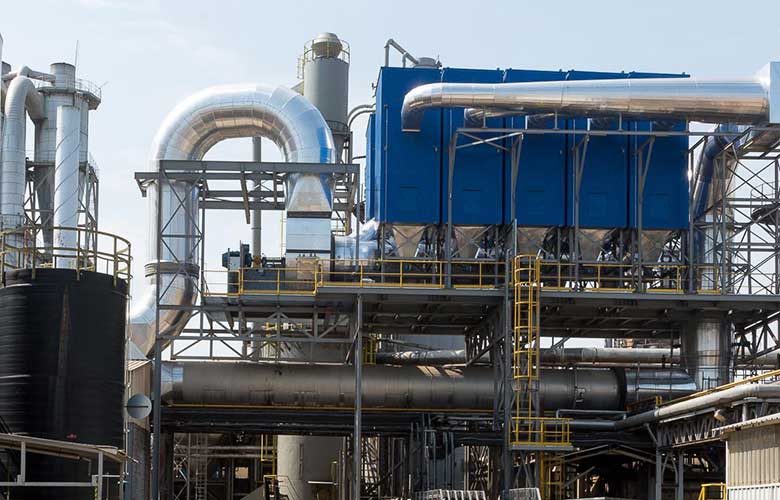

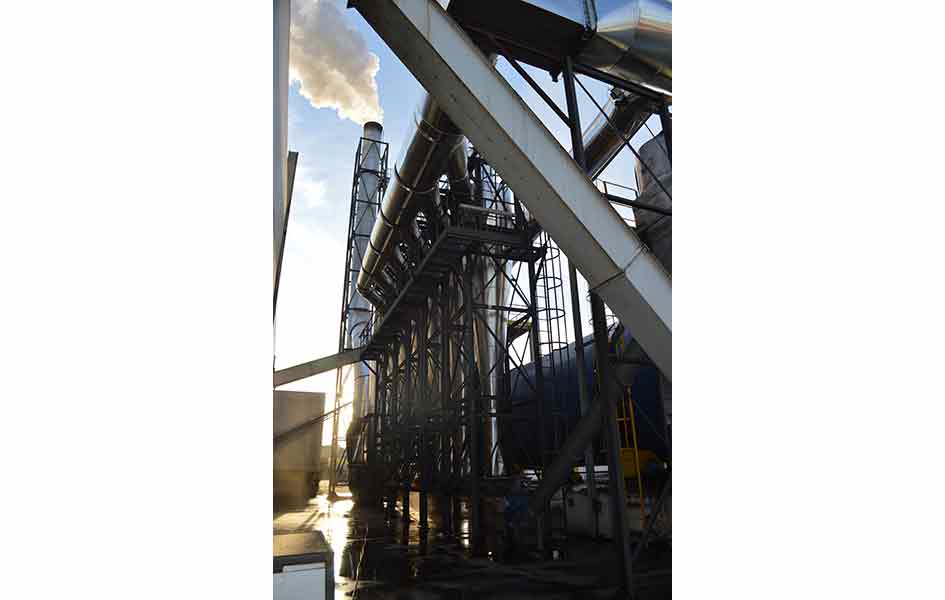

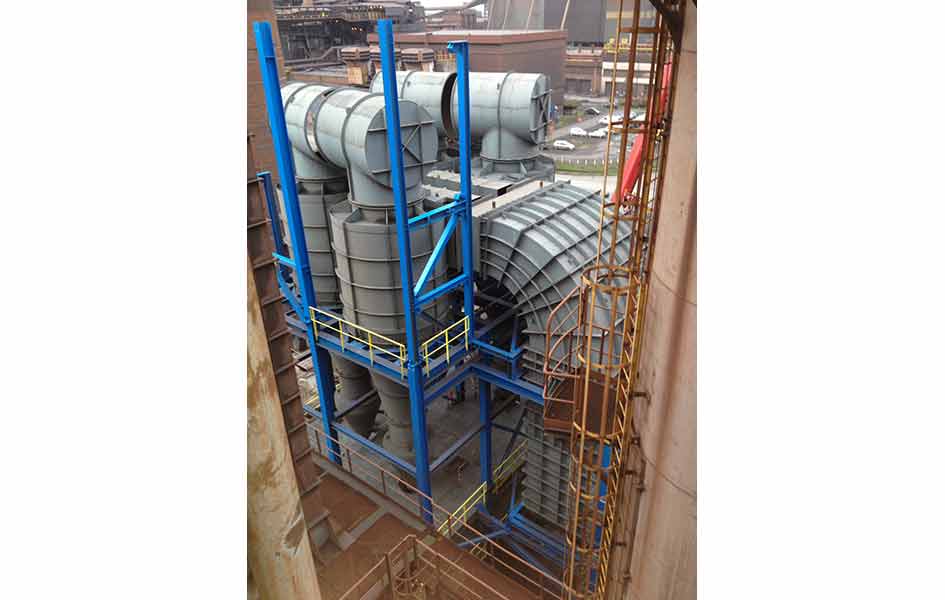

AC Systems Cyclones

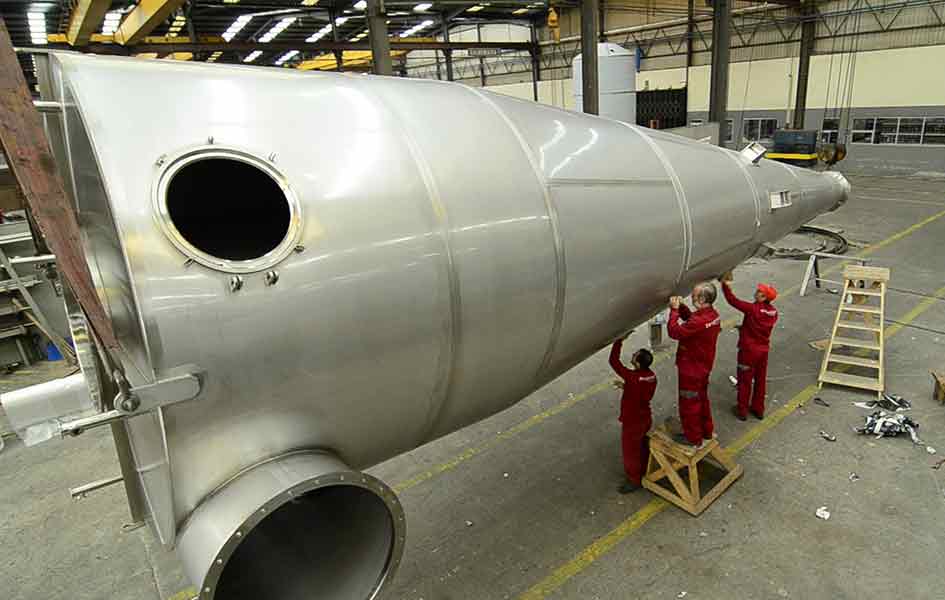

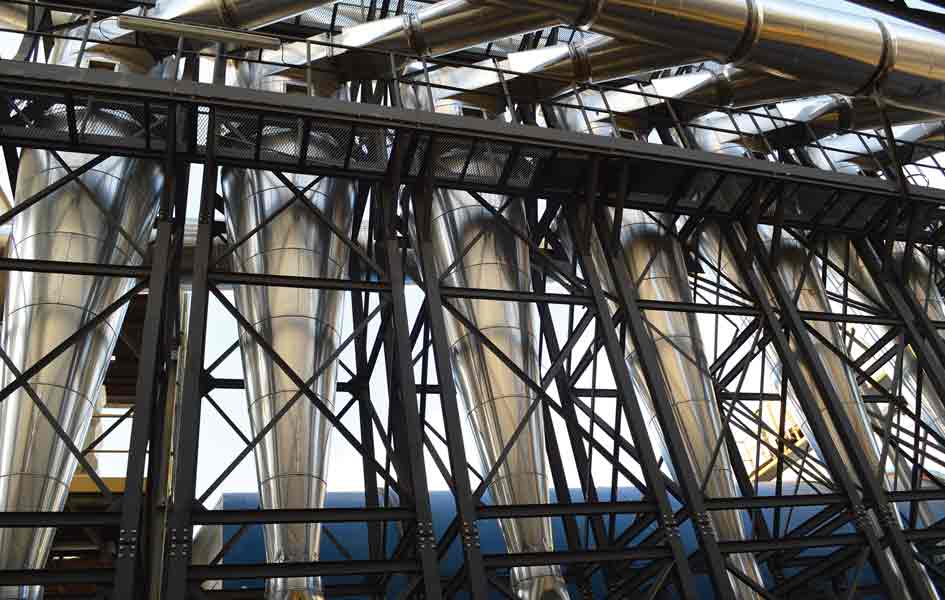

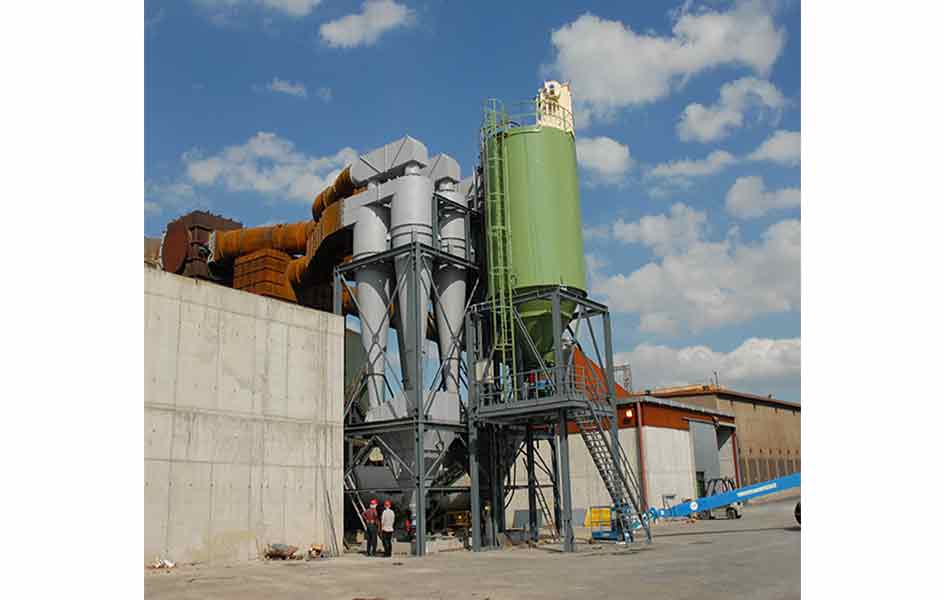

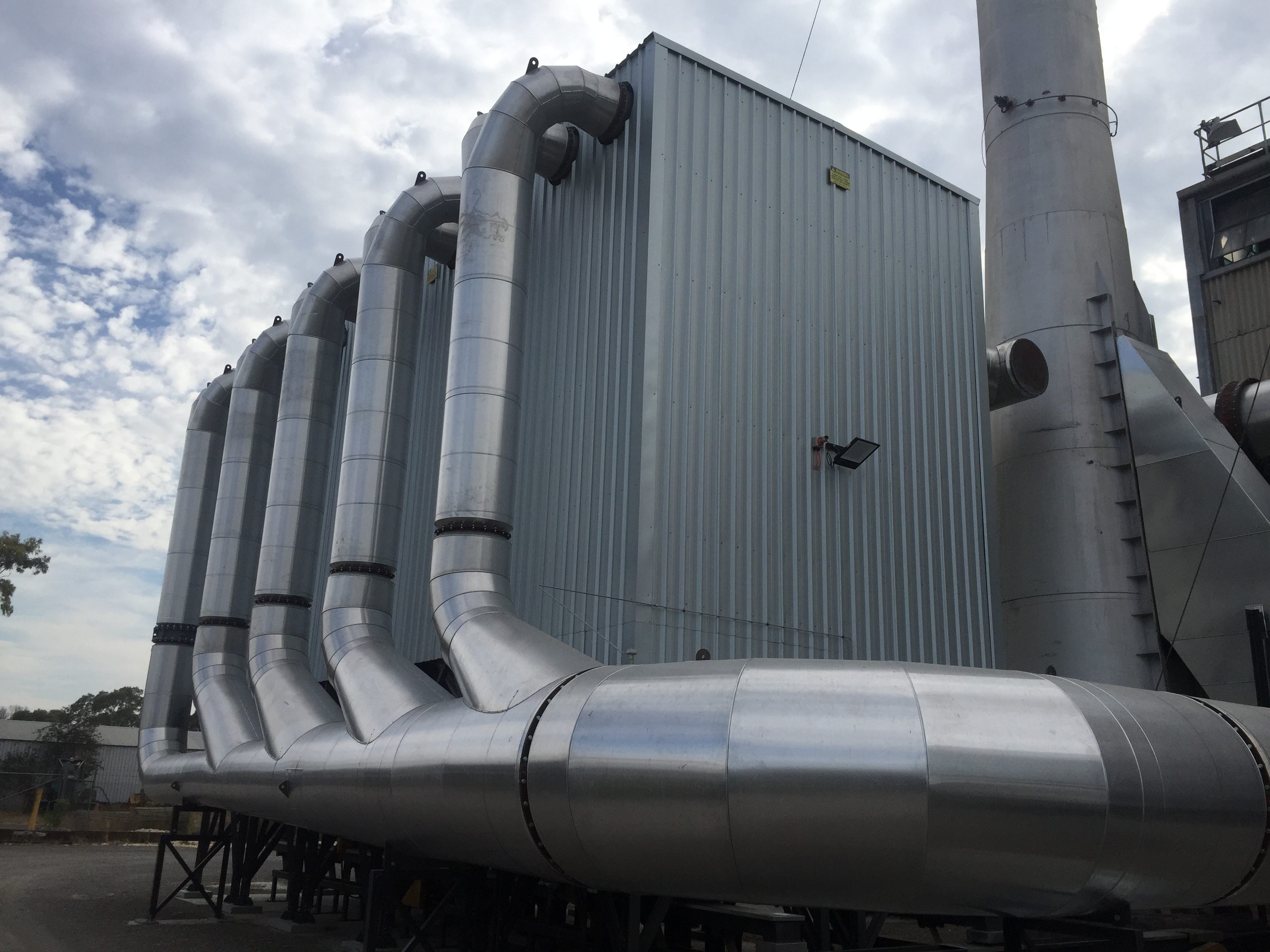

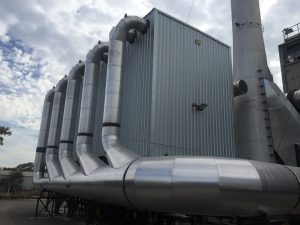

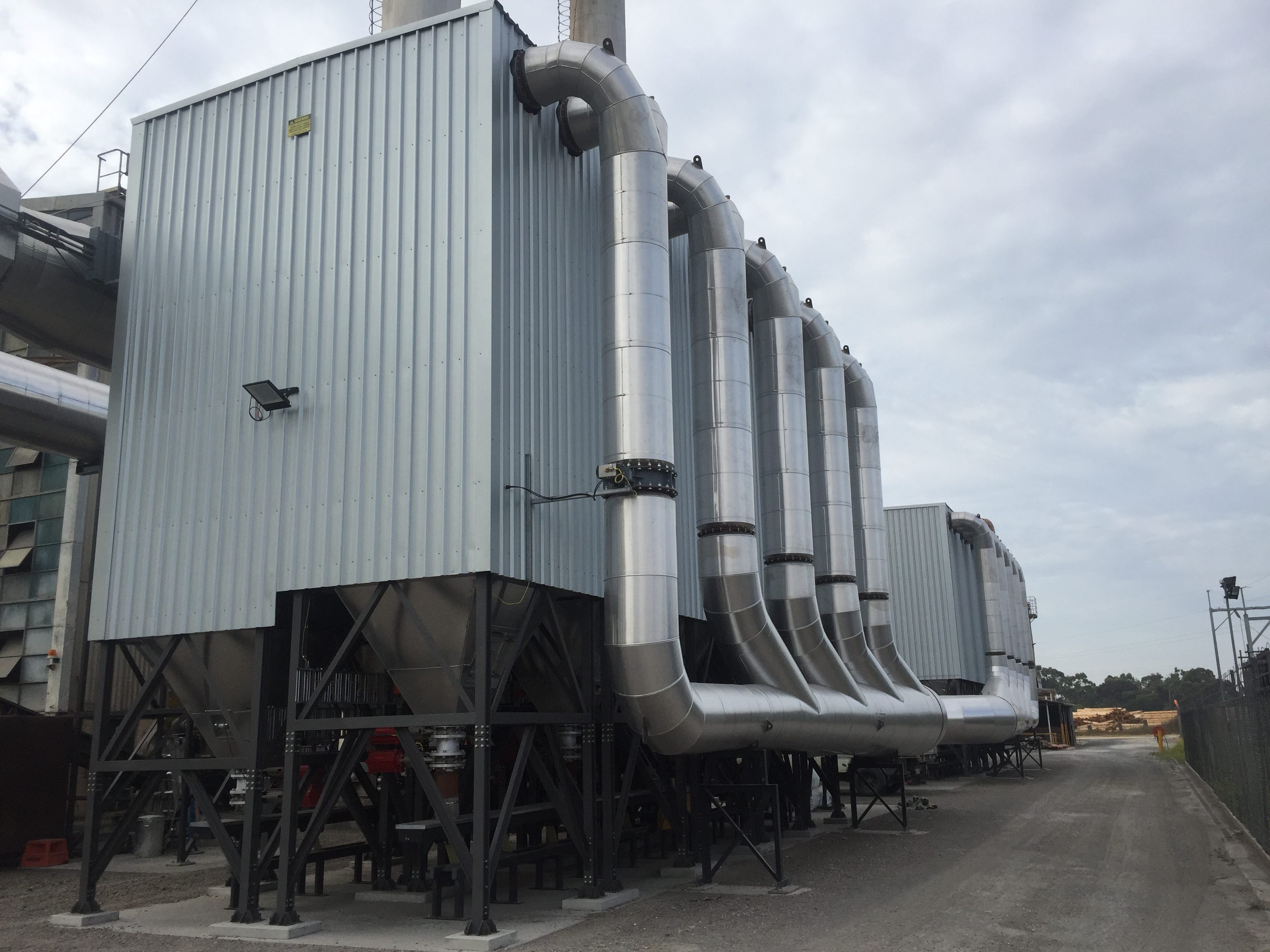

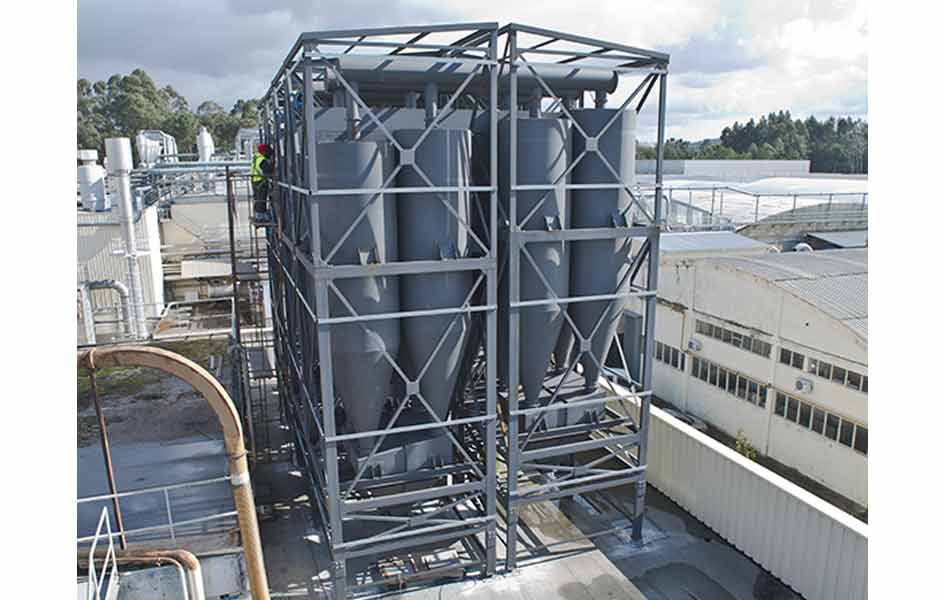

As exclusive Australasian representatives for Advanced Cyclone Systems, we can offer this new technology for high efficiency cyclonic separation of particles from airstreams.

Ideal for numerous applications including biomass combustion emission control. Very low emissions, ranging from [26-105mg]/Nm3 depending on the boiler, fuel and cyclones used.
