Deep Bed Scrubber for Corrosion

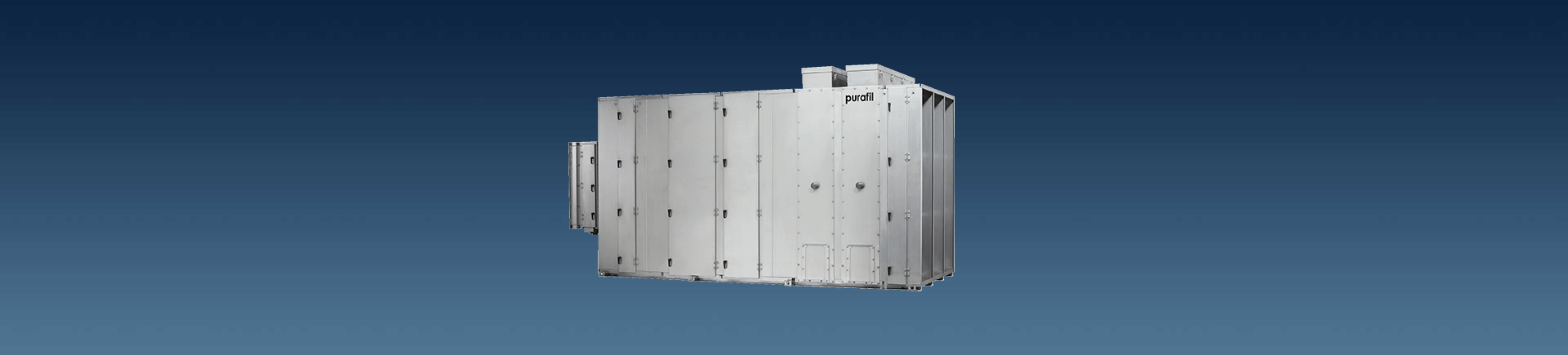

The Deep Bed Scrubber (DBS) for corrosion control is designed for areas where high contaminant gas levels are present.

It provides protection against environmentally induced corrosion in control and switch gear rooms equipped with electronic process control systems.

The Deep Bed Scrubber system is ideal for refineries, steel mills, smelters, chemical plants, petrochemical plants, and other hostile environments.

Each DBS is designed to deliver deliver “G1” air to the space it is protecting according to the environmental standard definition set by the International Society of Automation (ISA).


Please contact our Auckland, Christchurch or Sydney offices for further assistance >


Auckland :
+64 9 262 4474
Christchurch :
+64 3 366 1411
Sydney :
+61 38080 9935
Corrosion Free Air

Each DBS delivers “G1” corrosion-free air to the space it is protecting.

The scrubber’s aluminum construction is corrosion resistant and capable of withstanding outdoor conditions.

The DBS is designed for installation outside of the space it is protecting, making it suitable for retrofit applications or in environments without room for air purification equipment within the space to be protected.

Systems are available from 680m3/hr (400 CFM) and higher, offering design flexibility to meet specific design requirements.



Media Selection

To control specific contaminant gases, the DBS is filled with up to three different dry scrubbing media manufactured by Purafil. Each media type effectively removes a range of contaminant gases for maximum protection against corrosion.

Economical: The DBS is effective at a low cost per m3/s. Specific pressurization and efficiency requirements can be met, reducing the capital cost of the equipment.



System Compatibility

The DBS is designed to be compatible with the Purafil Corrosive-Air System (CA) and the Purafil Side Access System (PSA) when room requirements include environmental recirculation.

Can be locally serviced by us, we provide timely technical assistance and outline a comprehensive service program.

Standard Features

• 3003 H14 aluminum construction
• Pre and Final filters (30% efficient and 90%respectively per ASHRAE standard 52-76)
• Up to three different dry-scrubbing media manufactured by Purafil, Inc.
• Mill and chemical duty motor and blower
• 1.0 IWG (249 Pa) external static pressure

Optional Extras

• Stainless steel construction
• Double Wall construction
• OnGuard® Smart for clean air verification
• Explosion proof motor
• Rainlouver with birdscreen
• Redundant blower, motor, and back draft dampers
• Additional external static
• Pre and final filter gages with housing
• UL listed for hazardous and non-hazardous environment
