Globe Valves

ARI Globe Valve features include their ability to precisely control and regulate fluid flow whilst offering tight shutoff and minimising leakage. Globe Valve key characteristics are their durability, leak-tight sealing, and versatile use with fluids including water, steam, oil, and gases, and suitability for high-pressure and temperature systems.

ARI Faba Bellows Sealed Globe valve

DN15-500 PN16-160 ANSI150-600
Cast iron – SG iron – Steel – Stainless Steel
Flanged - butt weld – socket weld – BSP
Marginal seat – regulating plug option
SDNR Screw Down Non-Return option
Closed / open limit switch option
Pneumatic and Electric actuators

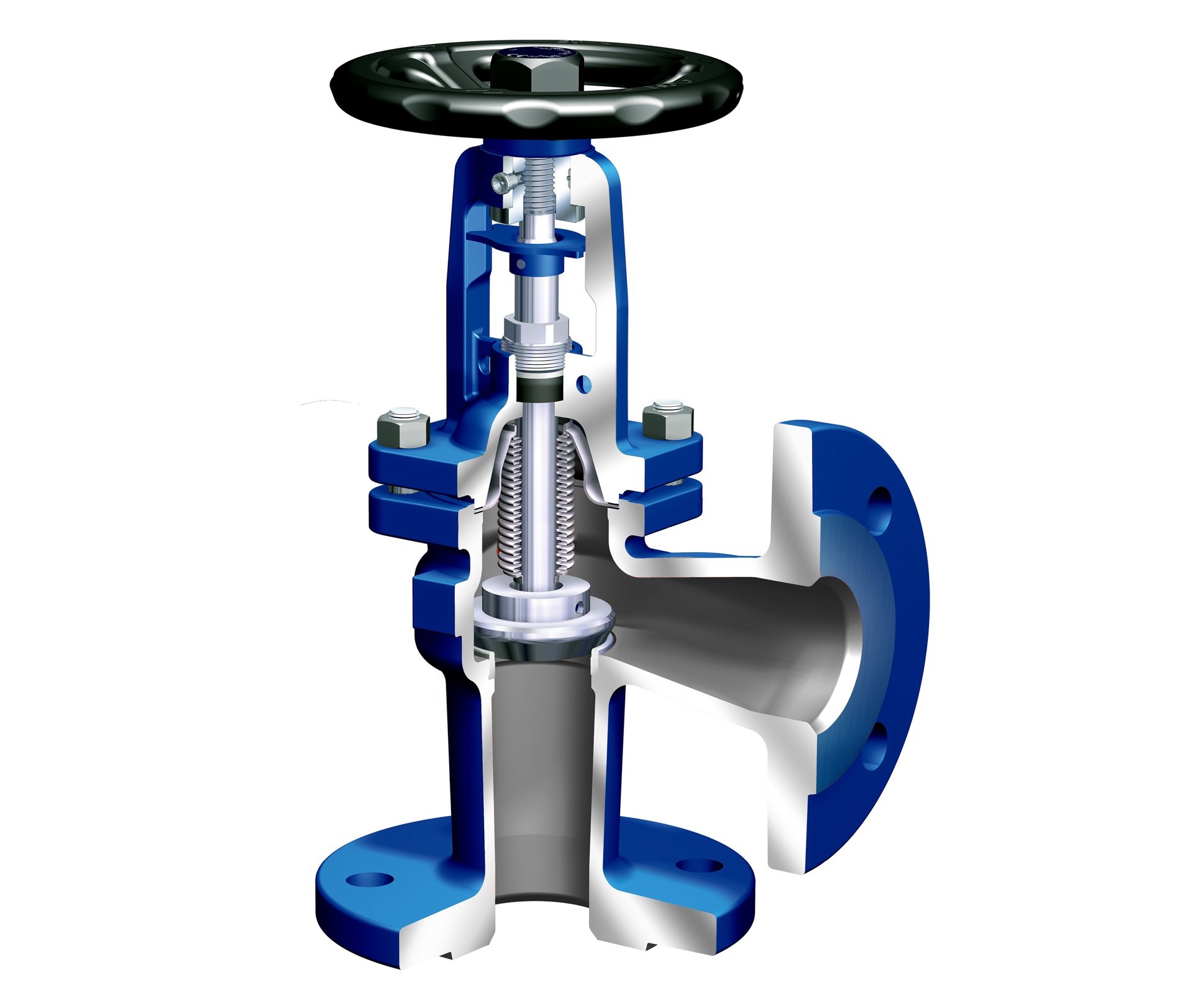

ARI Faba Right Angle Globe valve

DN15-300 PN16-40 ANSI150-300
Cast iron – SG iron – Steel – Stainless Steel
Flanged - Y pattern option
Marginal seat – regulating plug option
SDNR Screw Down Non-Return option
Closed / open limit switch option

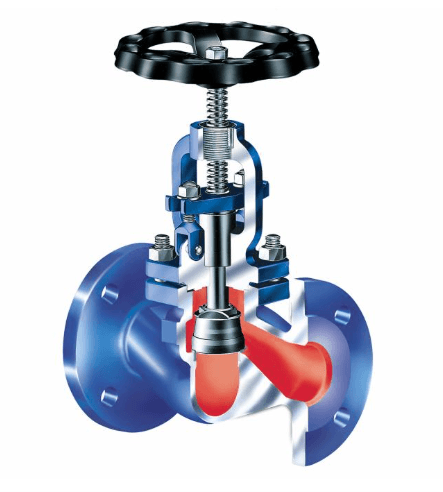

ARI Stobu Gland Sealed Globe valve

DN15 - 500 PN16 – 160 ANSI150 – 600
Cast iron – SG iron – Steel – Stainless Steel
Flanged - butt weld – socket weld – BSP
SDNR Screw Down Non-Return option
Closed / open limit switch option
Straight through and 3 – Way form
Pneumatic and Electric actuators

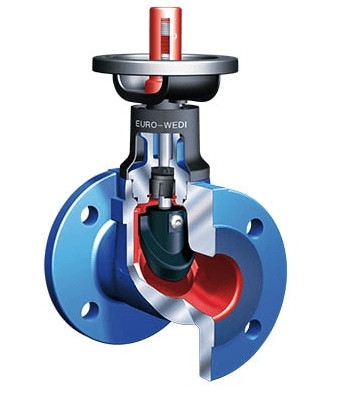

ARI Euro Wedi Soft Face Globe valve

DN15 – 200 PN10 -16 up to 130 deg C
Cast iron
Locking device and travel limiter standard

ARI Globe Valve Spares & Support

Includes
- Stem and bellows
- Graphite packing rings
- Gaskets
- Plugs
- Handwheels etc.
