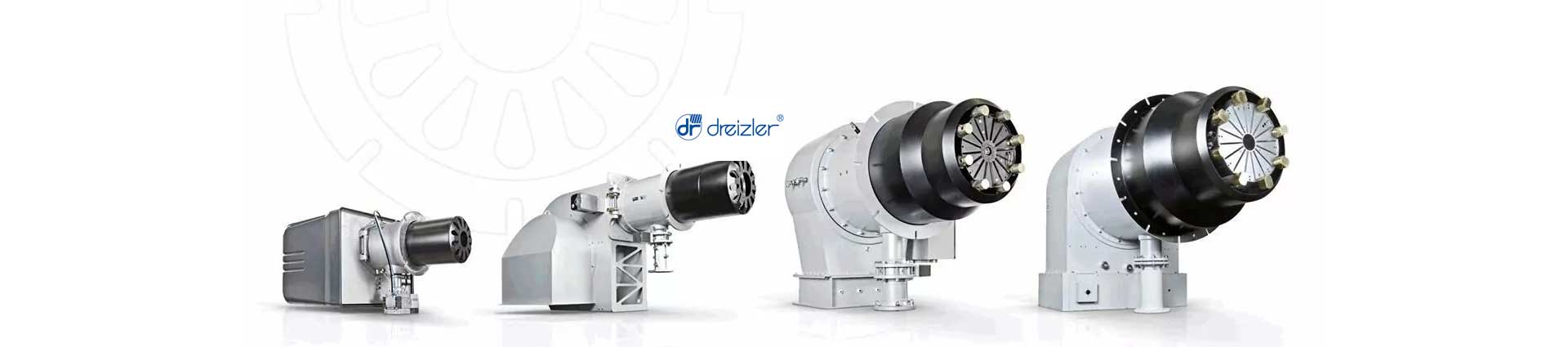

Dreizler Industrial Gas Burners

We are the NZ agents for world leading Dreizler Industrial gas burners.

Dreizler develops and produces forced draught burners for industrial heat and steam generation for application in power plants, food and paper industry as well as in a variety of other industries.

Through the efficient and clean use of a wide variety of energy sources, such as natural gas, biogas, biodiesel, liquid fuels as well as hydrogen, they are commited to making a contribution to the energy transition.

Pure Energy.

Reliable. Efficient. Clean.

http://www.dreizler.com

Our dedicated Windsor Energy Products team can help you with essential spare parts for your boiler!

Windsor Energy Products (Auckland)

Ph: +64 9 262 5049
energy.products@windsor.co.nz
Unit 3 / 23 Druces Road, Wiri, Manukau City, Auckland 2104

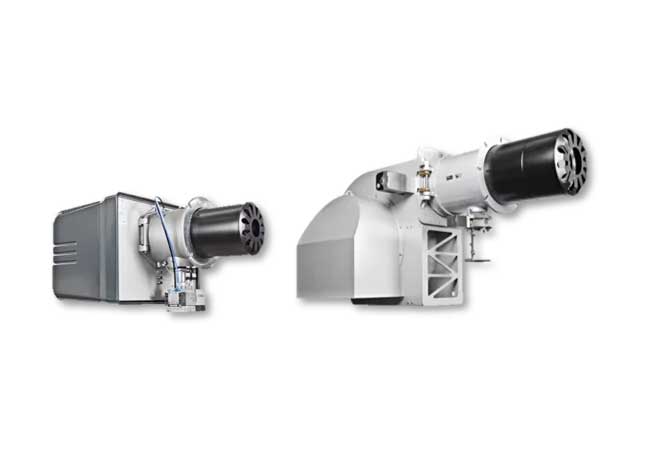

MONObloc up to 20 MW

Compactly designed powerpack with built-in combustion air fan.
- Integrated burner control system
- Compact and maintenance-friendly design
- Choice of either electronic or pneumatic linkage
- Available as gas burner, dual fuel burner or oil burner
- Retrofitting an existing oil burner to obtain a dual fuel burner possible at any time
- Each dual fuel burner can be operated purely with oil

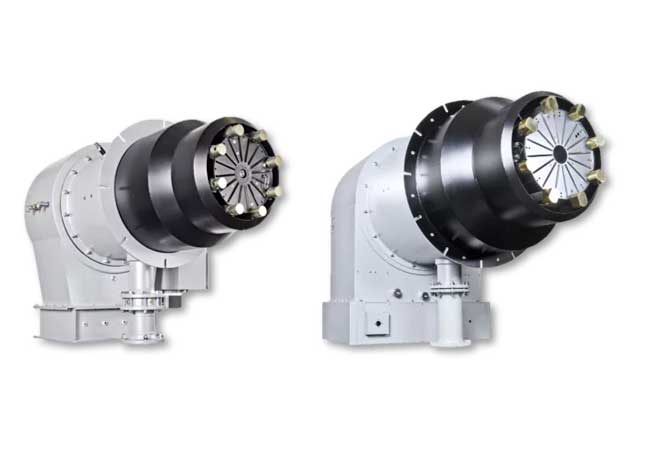

DUObloc up to 44 MW

Maximum flexibility due to physical separation of burner and combustion air supply
- Flexible setup of air fan according your requirements
- Variably optimizable choice of fuel
- Fuel indepence means security of supply
- Simultaneous combustion
- Integrated burner control system
- Efficient operation
- Choice of either electronic or pneumatic linkage
- Available as gas burner, dual fuel burner or oil burner
- Retrofitting an existing oil burner with a gaseous fuel possible at any time
- Each dual fuel burner can be operated purely with oil

MAGMAblue - ULTRA LOW NOx Gas Burners

Surface Combustion Premix System

In MAGMAblue® Postmix flat burners, fuel-air mixing takes place downstream of the combustion air blower.

The mixing device is based on the LOW NOx technology of the marathon® MONObloc forced draught burner and is supplemented with an inserted stay ring and the MAGMApad for surface combustion. With this combination, a nearly homogeneous mixture with a short mixing distance is achieved.
- Modulating flat burner with round burner body and a diameter of up to 400 mm
- Capacity: 81 - 820 kW
- Cool flame root for LOW NOx combustion
- High power density
- Short combustion chamber possible
- Low-noise performance
- Exchangeable MAGMApad
- ULTRA LOW NOx < 35 mg/kWh

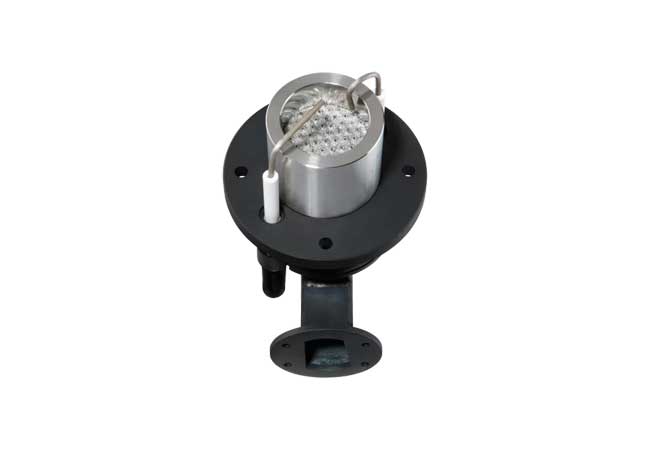

MAGMAblue® Premix Flat Burner with a Capacity of up to 60 kW

Surface Combustion with Premix System for Industrial Thermoprocessing Equipment according to EN 746-2
In MAGMAblue® premix burners, premixing of natural gas and air takes place completely on the suction side of the fan. Thanks to the special flame geometry, a significant improvement in the NOx class is achieved.
- Modulating regulation
- Control ratio of up to 1: 10
- Premixing of gas and air in the fan
- Very short burner flame
- Exchangeable MAGMApad
- Designed for operation with natural and liquid gas
- Optional equipment: external air suction system, air filtration
- Capacity Ranges MAGMAblue® M 20 F40 - M 60 F98

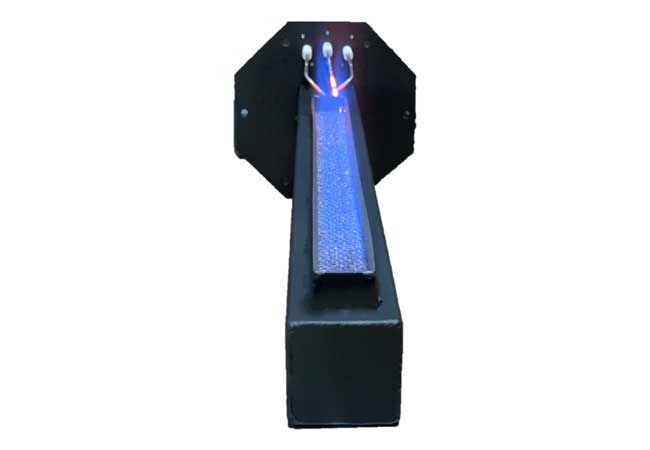

MAGMAblue® Premix Line Burner with a Capacity of up to 70 kW

In MAGMAblue® premix burners, premixing of natural gas and air takes place completely on the suction side of the fan. Thanks to the special flame geometry, a significant improvement in the NOx class is achieved.
- Modulating regulation
- Control ratio of up to 1:8
- Premixing of gas and air in the fan
- Very short burner flame
- Designed for operation with natural and liquid gas
- Optional equipment: external air suction system, air filtration
- Capacity Ranges MAGMAblue® M 30 L200 - M70 L450
