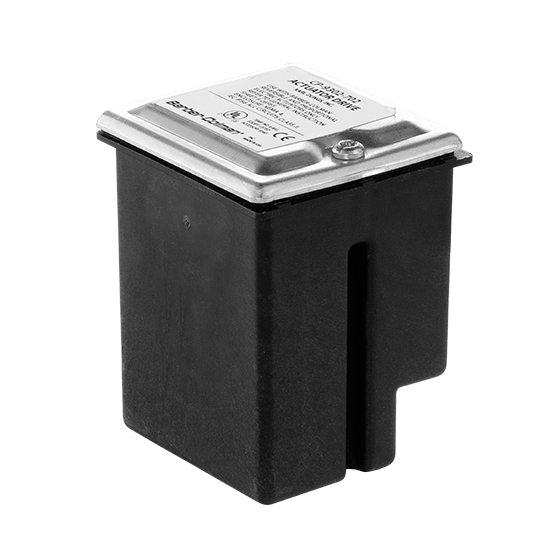

The CP-9302-702 electronic actuator drive processes a variable input signal from a controller to provide proportional control of an electric actuator.

The CP-930-702 is preset for current input (4 - 20 mA) and has additional wiring for connection to an override switch for applications requiring an external override of the input signal.

The CP-9302-702 is equipped with built in jumpers and adjustable potentiometers, so that the type of input signal, deadband, input span, and start point may be readjusted in the field when necessary

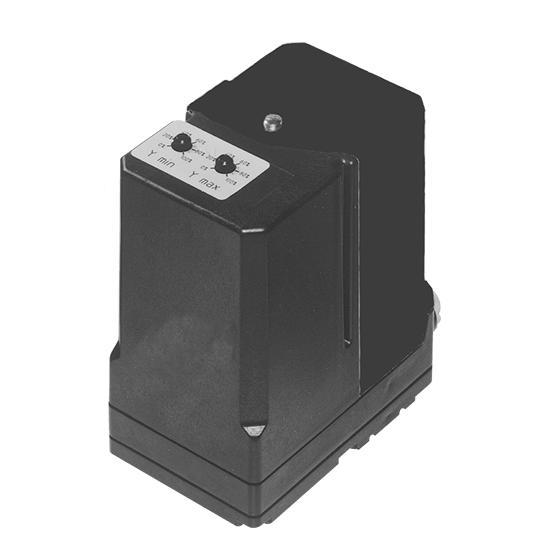

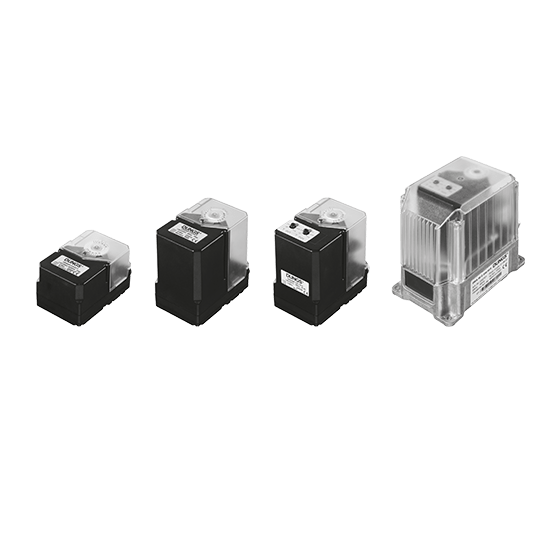

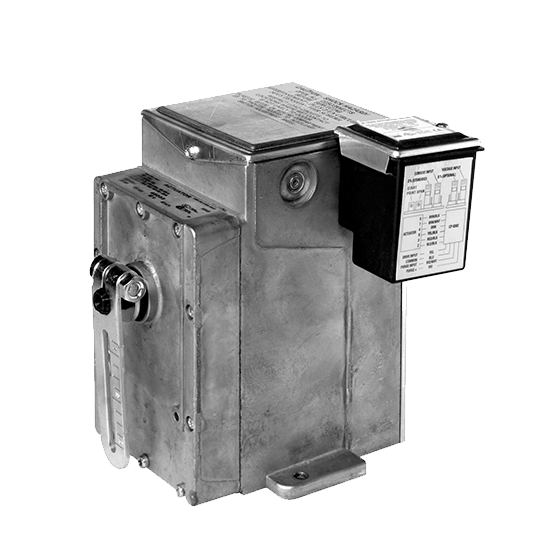

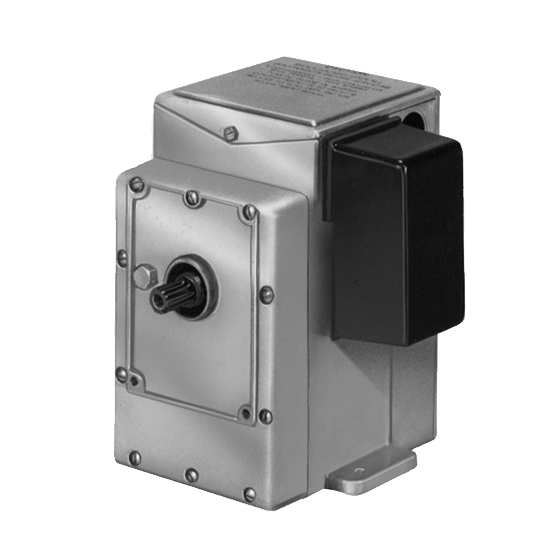

The DMA actuator drives from 0° to 90° via a 4 to 20 mA input signal. It can move in any direction and stop anywhere over the entire 90° stroke.

The field adjustable stroke is factory set at 90° and the position is factory set at 0°.

The DMA is available in three different set speeds: 6 s, 12 s or 30 s. The DMA has one independent, field adjustable auxiliary SPDT switch and two field adjustable limit switches.

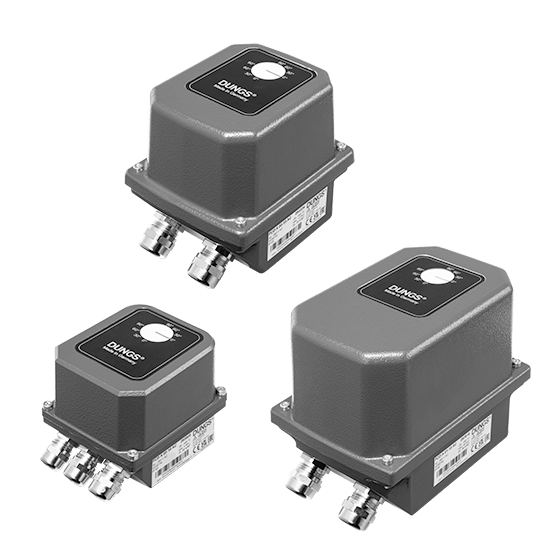

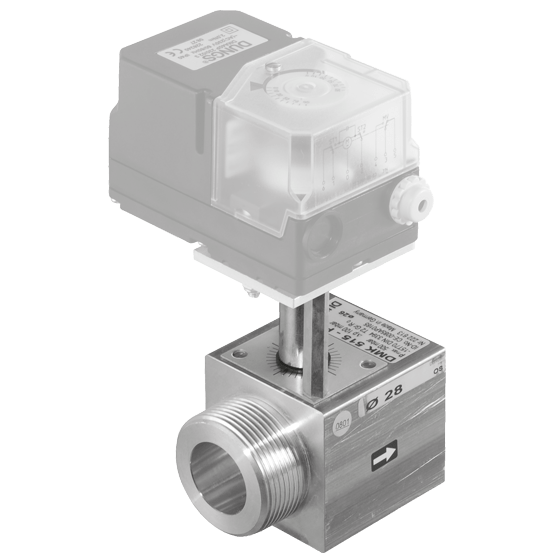

Various actuator drives are available for the Dungs DMK motorised butterfly valves:
- Actuators with cams, Electronic actuators with analog output signal.

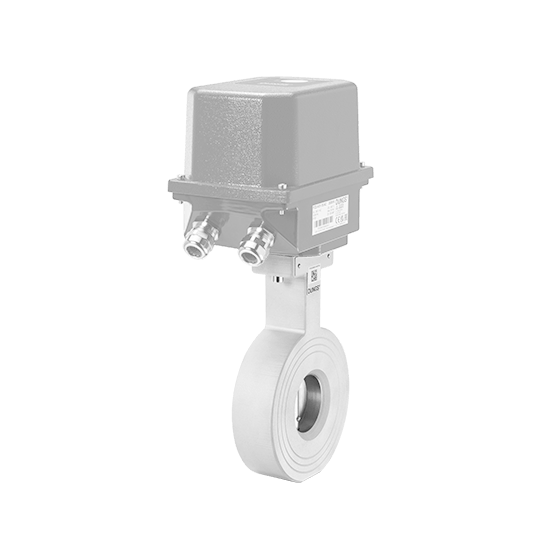

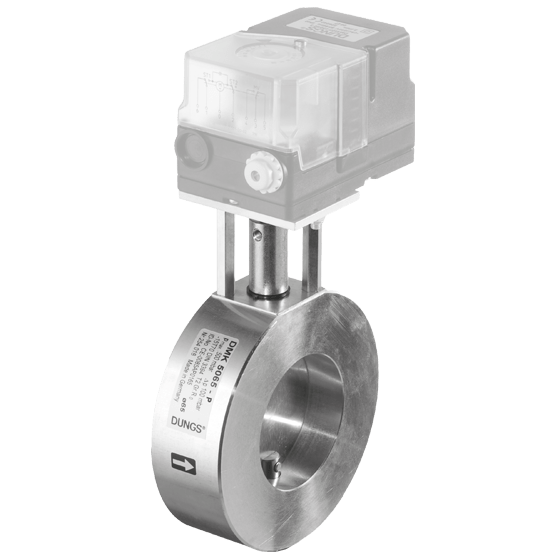

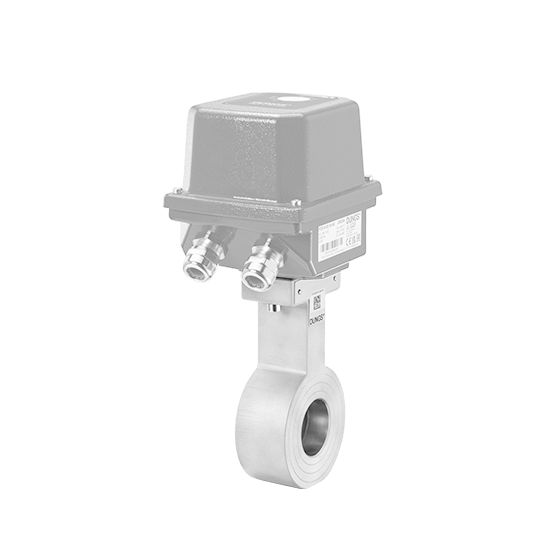

The actuator drives, which guarantee a precise rotation between 0 and 90 °C, are used in combination with the DUNGS DMK motorised butterfly valve to control the gas supply or the air supply to gas-burning appliances e.g. gas burners.

Max. Operating pressure: 500 mbar
Nominal diameter: DN 40 - DN 125
Approvals: DIN 3394 T2

Max. Operating pressure: 500 mbar
Nominal diameter: Rp 3/4 - Rp 2
Approvals: DIN 3394 T2

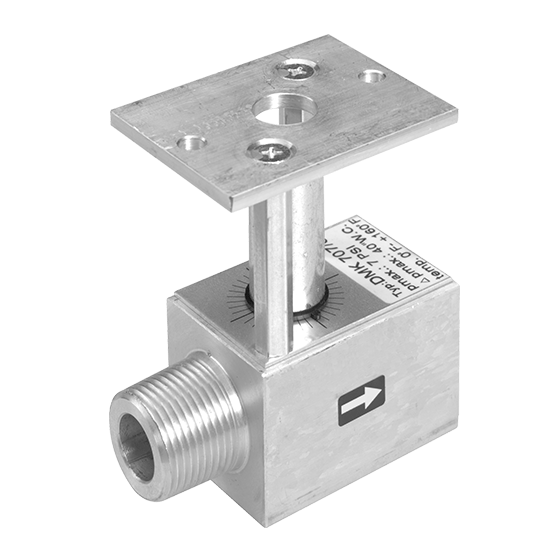

Max. Operating pressure: 7 PSI
Nominal diameter: NPT 3/4 - NPT 2

Max. Operating pressure: 500 mbar
Nominal diameter: DN 40 - DN 200

Max. Operating pressure: 500 mbar
Nominal diameter: DN 40 - DN 150
