Dungs MultiBloc Multifunctional Gas Controls

The DUNGS GasMultiBloc® integrates filter, regulator, valves and pressure switches in one compact fitting.

We are the New Zealand agent for Dungs International Ltd, world leading manufacturer of burner, heating, gas and industrial process components. We sell replacement parts through to complete design and build systems.

Please contact our Auckland Energy Products team for further assistance >

Windsor Energy Products (Auckland)

Ph: +64 9 262 5049
energy.products@windsor.co.nz
Unit 3 / 23 Druces Road, Wiri, Manukau City, Auckland 2104

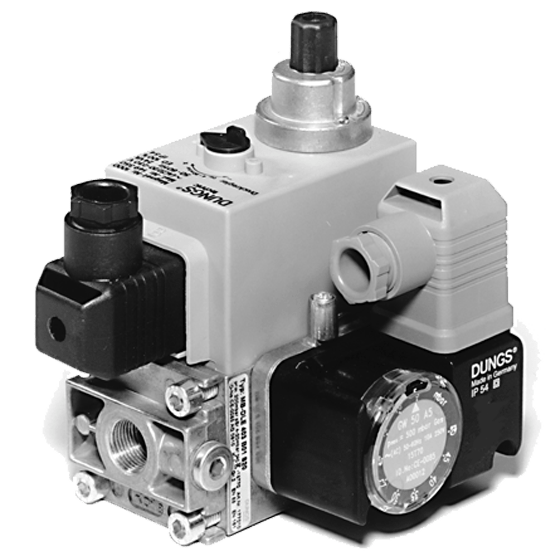

MB-D(LE) 403/053 B01: GasMultiBloc®, Control and safety combination, One-stage mode

Max. Operating pressure: 200 mbar
Nominal diameter: Rp 3/8 - Rp 1/2
Approvals: EN 161 / EN 88

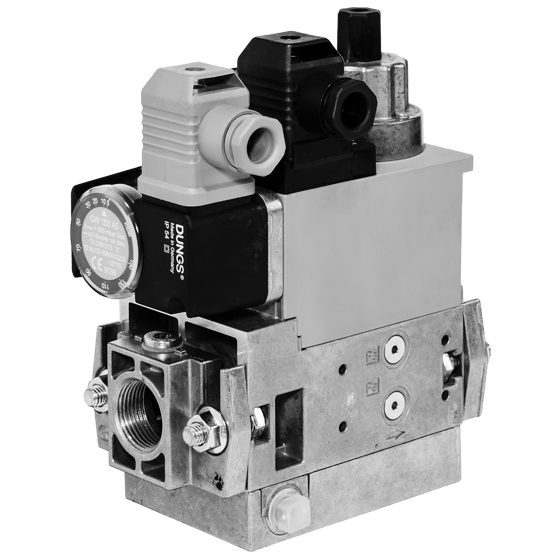

MB-D(LE) 405-412 B01: GasMultiBloc®, Control and safety combination, One-stage mode

Max. Operating pressure: 360 mbar
Nominal diameter: Rp 1/2 - Rp 1 1/4
Approvals: EN 161 / EN 88

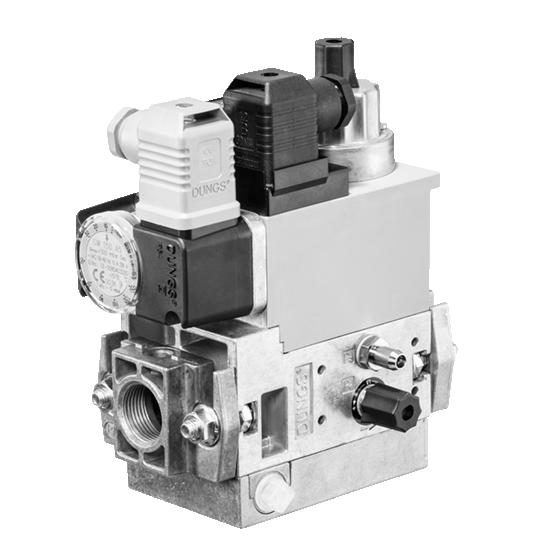

MB-D(LE) 407-412 B07: GasMultiBloc®, Control and safety combination, One-stage mode, Integrated bypass valve

Max. Operating pressure: 360 mbar
Nominal diameter: Rp 1/2 - Rp 1 1/4
Approvals: EN 161 / EN 88

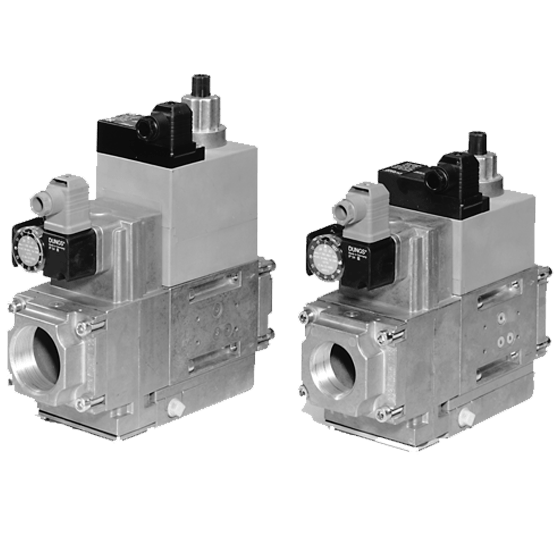

MB-D(LE) 415-420 B01: GasMultiBloc®, Control and safety combination, One-stage mode

Max. Operating pressure: 360 mbar
Nominal diameter: Rp 1 - Rp 2
Approvals: EN 161 / EN 88

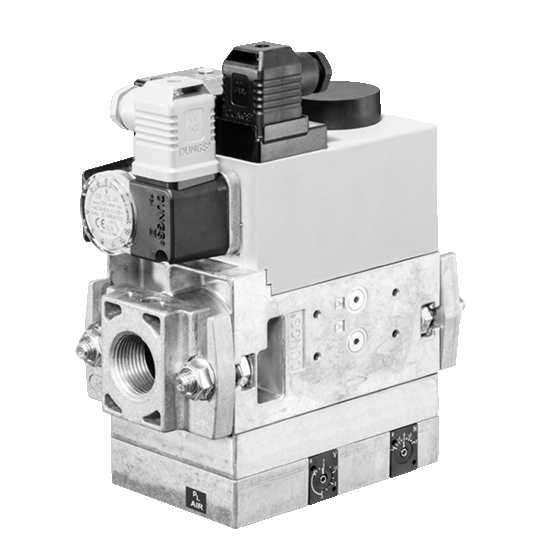

MB-VEF 407-412 B01: GasMultiBloc®, Control and safety combination, Gas-air-ratio control

Max. Operating pressure: 360 mbar
Nominal diameter: Rp 1/2 - Rp 1 1/4
Approvals: EN 161 / EN 88

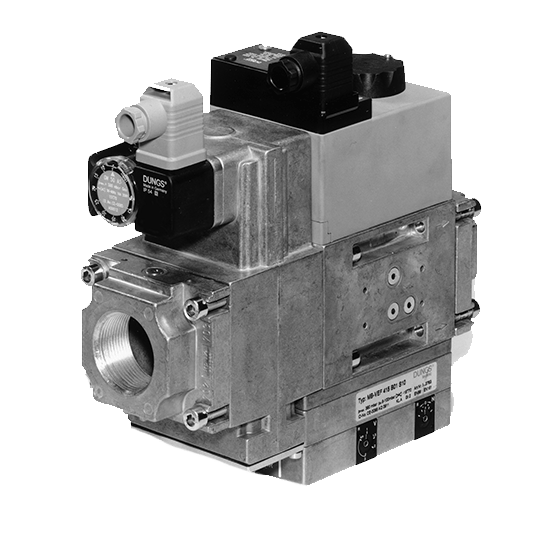

MB-VEF 415-425 B01: GasMultiBloc®, Control and safety combination, Gas-air-ratio control

Max. Operating pressure: 360 mbar
Nominal diameter: Rp 1 - Rp 2
Approvals: EN 161 / EN 88

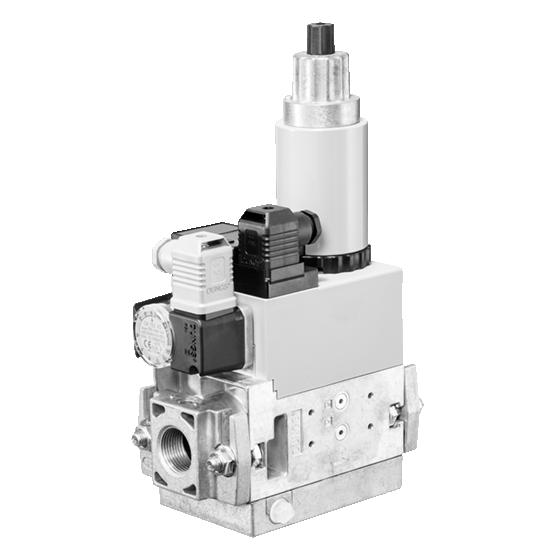

MB-ZRD(LE) 405-412 B01: GasMultiBloc®, Combined regulator and safety shut-off valves, Two-stage function

Max. Operating pressure: 360 mbar
Nominal diameter: Rp 1/2 - Rp 1 1/4
Approvals: EN 161 / EN 88

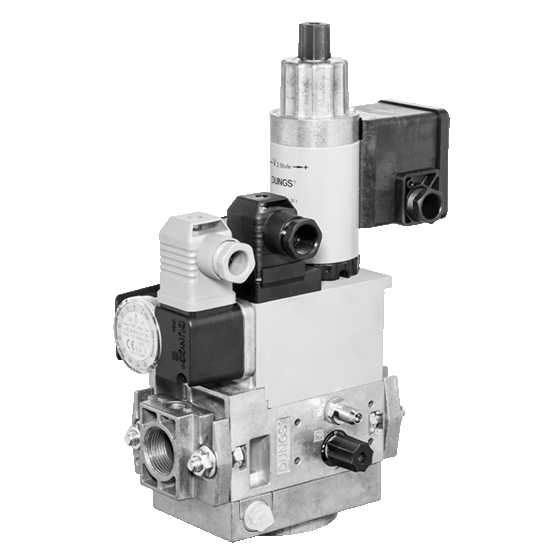

MB-ZRD(LE) 405-412 B07: GasMultiBloc®, Combined regulator and safety shut-off valves, Two-stage function, Integrated bypass valve

Max. Operating pressure: 360 mbar
Nominal diameter: Rp 1/2 - Rp 1 1/4
Approvals: EN 161 / EN 88

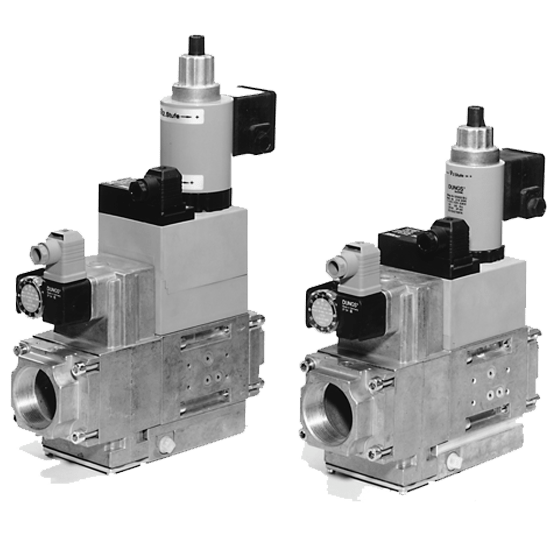

MB-ZRD(LE) 415-420 B01: GasMultiBloc®, Combined regulator and safety shut-off valves, Two-stage function

Max. Operating pressure: 360 mbar
Nominal diameter: Rp 1 - Rp 2
Approvals: EN 161 / EN 88

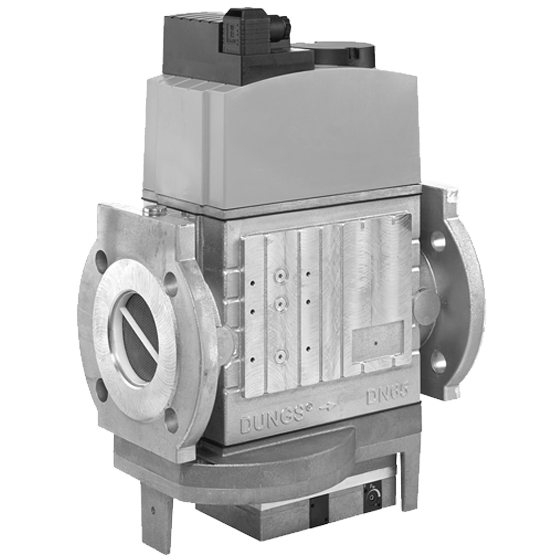

MBC-...-SE: GasMultiBloc®, Combined servo pressure regulator and safety shut-off valves

Max. Operating pressure: 500 mbar
Nominal diameter: DN 65 - DN 100
Approvals: EN 161 / EN 88

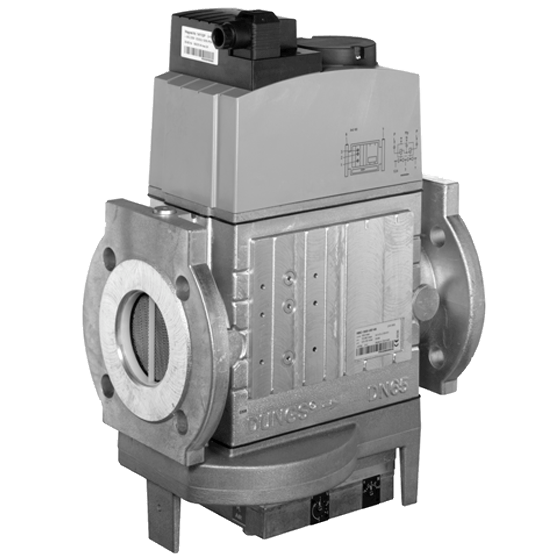

MBC-...-VEF: GasMultiBloc®, Combined regulator and safety valve, Infinitely variable air/gas ratio control mode

Max. Operating pressure: 500 mbar
Nominal diameter: DN 65 - DN 100
Approvals: EN 161 / EN 88 / EN 12067-1

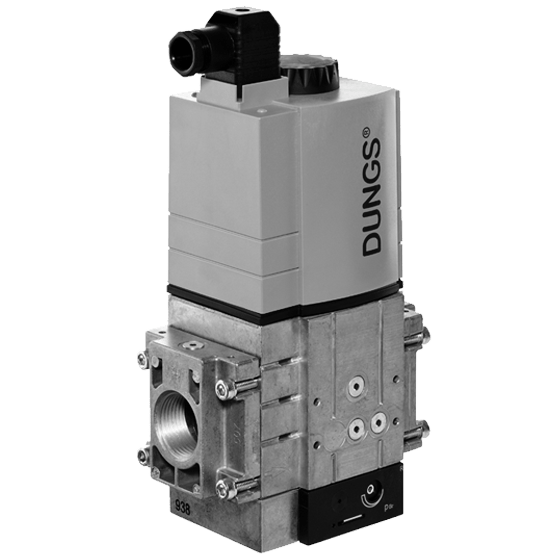

MBC-300/700/1200-SE/N: GasMultiBloc®, Combined servo pressure regulator and safety shut-off valves

Max. Operating pressure: 360 mbar
Nominal diameter: Rp 1/2 - Rp 2
Approvals: EN 161 / EN 88

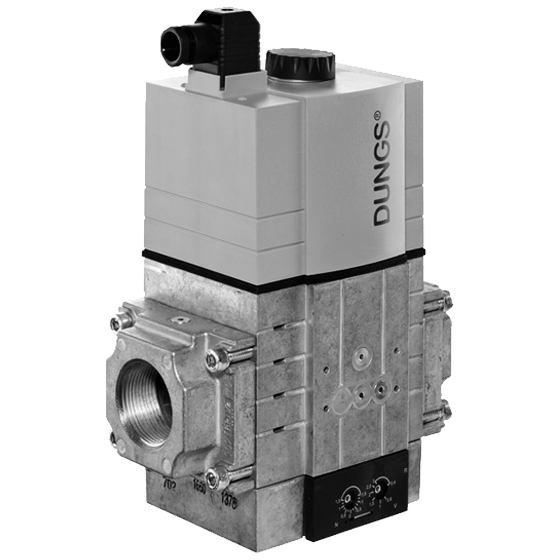

MBC-300/700/1200-VEF: GasMultiBloc®, Combined regulator and safety valve, Infinitely variable air/gas ratio control mode

Max. Operating pressure: 360 mbar
Nominal diameter: Rp 1/2 - Rp 2
Approvals: EN 161 / EN 88 / EN 12067-1

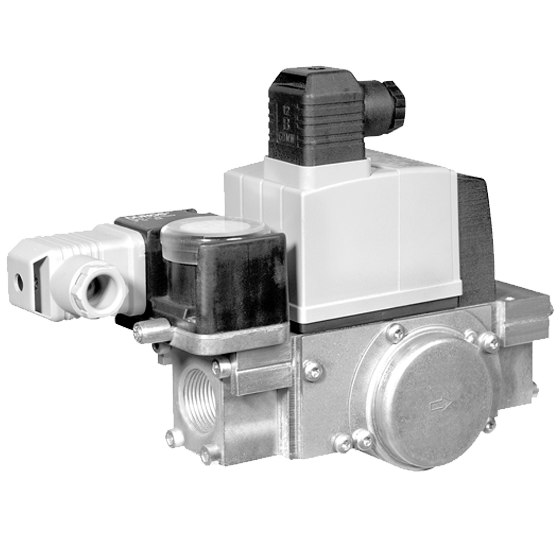

MBC-65/120...: GasMultiBloc®, Control and safety combination, One-stage mode

Max. Operating pressure: 200 mbar/360 mbar
Nominal diameter: Rp 3/8 - Rp 3/4
Approvals: EN 161 / EN 88

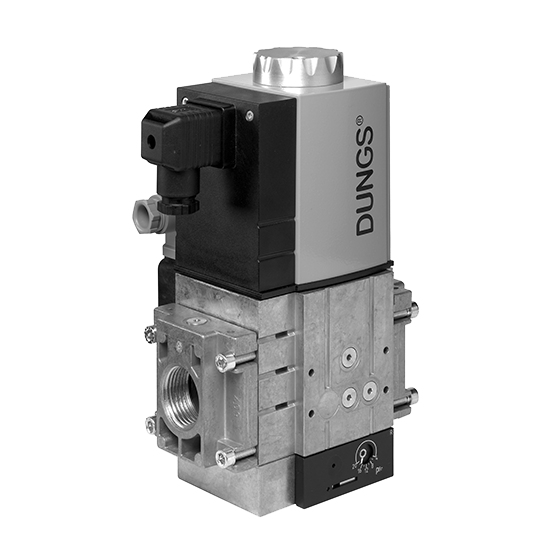

MBC-SE...: GasMultiBloc®, Multifunctional gas control (USA/CDN)

Max. Operating pressure: 5 PSI
Nominal diameter: NPT 1/2 - NPT 2
Approvals: UL/CSA/FM

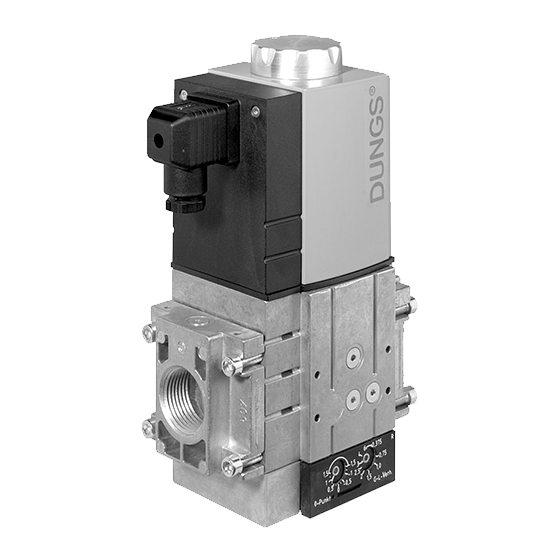

MBC-VEF...: GasMultiBloc®, Multifunctional gas control (USA/CDN)

Max. Operating pressure: 5 PSI
Nominal diameter: NPT 1/2 - NPT 2
Approvals: UL/CSA/FM

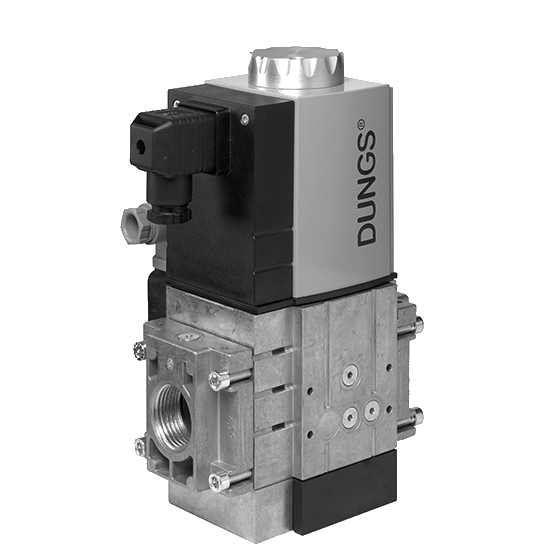

MBC-VV - Dual Modular Safety Shutoff Valves (USA/CDN)

Max. Operating pressure: 5 PSI
Nominal diameter: NPT 1/2 - NPT 2
Approvals: UL/CSA/FM

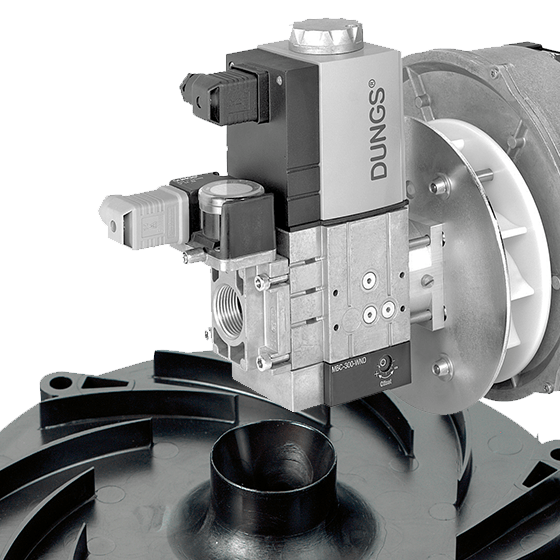

MBC-WND / GB-WND: DUNGS WhirlWind System®

MBC-WND / GB-WND: DUNGS WhirlWind System®

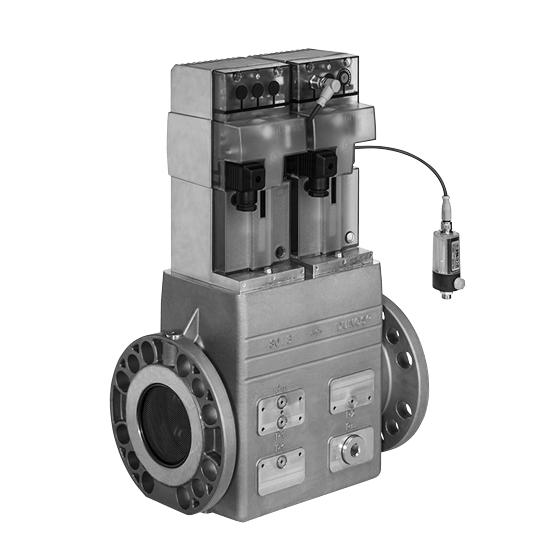

MBE GasMultiBloc®

Max. Operating pressure: 600 mbar / 700 mbar
Nominal diameter: Rp 1 1/2 – DN 125
Approvals: EN 126, EN 13611, EN 161, EN 88-1, EN 88-3 UL Listed to UL 429 and to ANSI Z21.21/CSA 6.5 C/I UL Listed to ANSI Z21.18/CSA 6.3

DESIGNPLUS 2017
Red Dot Award 2017
Good Design Award 2016

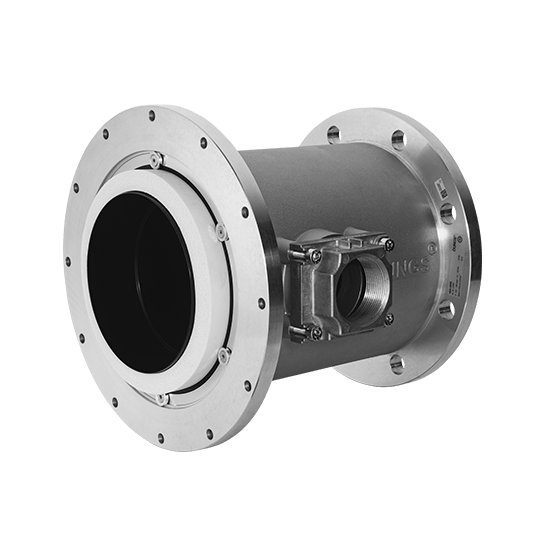

Venturi Signal Amplifier (VSA)

Venturi Signal Amplifier (VSA)

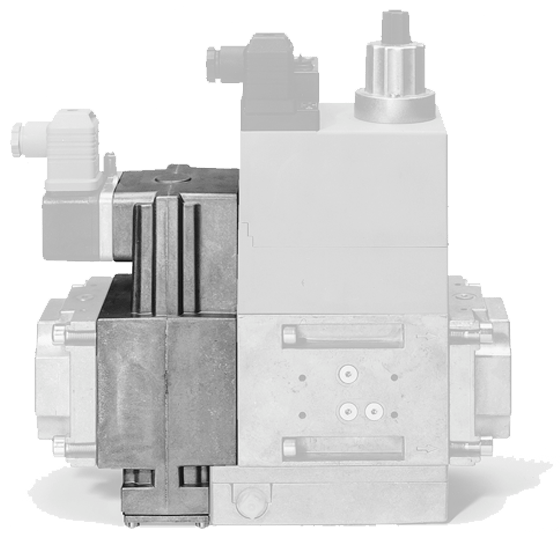

Pre-mount filter DMV...:

Pre-mount filter for GasMultiBloc®/Double solenoid valve: MB415/420, DMV507/512/520
Max. Operating pressure: 500 mbar
