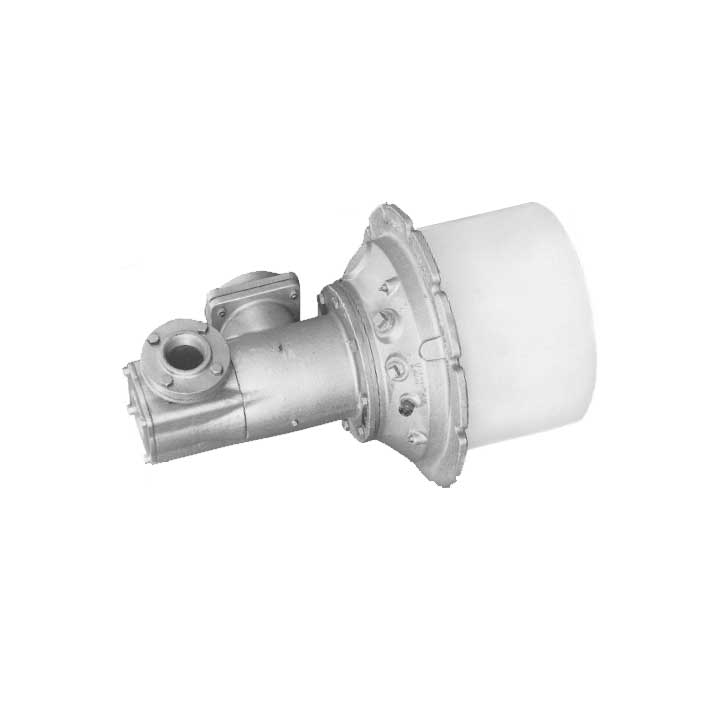

The Fire-All 4514 (gas) and 6514 (dual fuel) burners are used in high temperature applications like steel forging, aluminum melting, brass melting and reheating. They are also commonly used in low temperature applications such as ovens and air heaters.

Their construction enables maximum efficiency through close control of the air/fuel ratio, furnace atmosphere, and furnace pressure—all contributing to better product quality.

Our 6514 dual-fuel burner remains stable throughout a wide range of excess fuel and excess air. Both burners can operate with excess fuel without forming carbon, but additional air for complete combustion must be available in the furnace, near the burner.

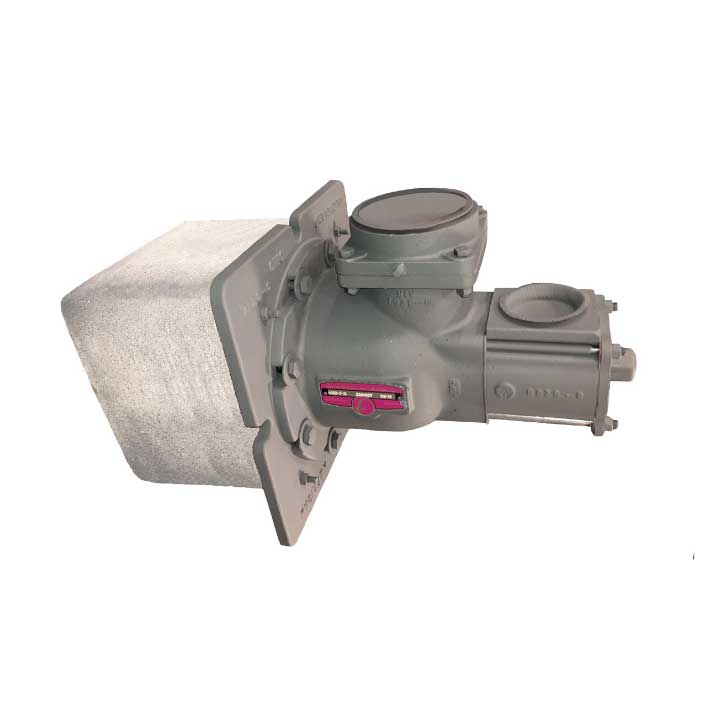

The Fire-All 4422 is a reliable and versatile low NOx burner solution.
This nozzle-mix burner remains stable over a wide range of air/gas ratios. It features a rugged burner body in heat resistant cast iron with Inconel air tubes. The burner is widely used on heat treat and nonferrous melting furnaces, kilns, ovens, air heaters, dryers, chemical process equipment, and other applications where superior temperature uniformity is required. The Fire-All 4422 burner can be used in furnace chambers up to 1,093°C (2,000°F).

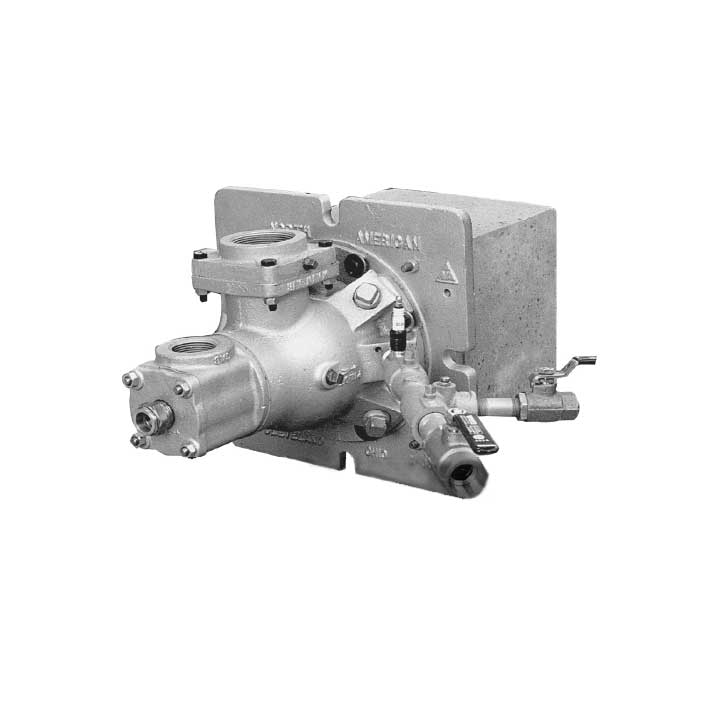

The Fire-All 4425 burner is used in high temperature combustion technology applications greater than 1,093°C (2,000°F). It was engineered for use in furnaces that run at both high and low temperatures, such as batch type kilns. It offers optimum reliability thanks to its excess air flexibility and construction, designed to withstand radiant heat.

Other applications which commonly use the Fire-All 4425 thermal solutions are forge furnaces, ceramic kilns, metal and glass melters, and heat treat furnaces.

The North American FIRE-ALL 5514 Oil Burners are rugged, maintenance-free, sealed-in burners for burning light or heavy oil on a wide variety of applications. Capable of efficient operation throughout a wide temperature range, they are equally at home on low temperature ovens and high temperature forge and melt furnaces.
